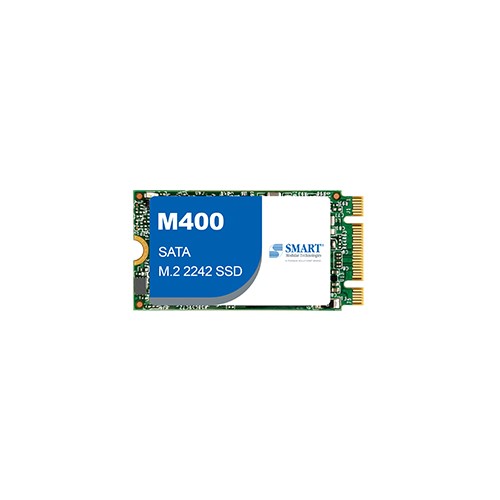

M400 | SATA | M.2 2242 SSD

SATA

SMART Modular’s M400 SATA M.2 SSDs are designed for demanding enterprise and industrial applications including servers, networking, and storage systems. They support AES-256 hardware encryption and ATA security features as Self-Encrypting Drives (SEDs), and integrate seamlessly into host systems without the need for BIOS modifications or additional drivers.

Built with Single Event Upset (SEU) protection for enhanced data integrity, the M400 helps safeguard against data corruption caused by radiation or voltage fluctuations in harsh environments. It also supports SMART’s NVMsentry™ firmware customization services—offering tailored features to meet specific customer requirements in reliability-critical deployments.

Essentials
M400
eTLC
SATA 3.0 6Gb/s
Performance
Up to 540MB/s
Up to 520MB/s
Up to 79K IOPS
Up to 74K IOPS
240GB
480GB
960GB
Reliability
240GB: 471TBW
480GB: 920TBW
960GB: 2114TBW
(JEDEC® Enterprise Workload)
> 2,000,000 hours
1
Environmental
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
C-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃
-40℃ to +85℃
40℃, Operation: 90% RH, Storage: 93% RH
Physical
42mm
22mm
3.65mm
SRM24960GFCM2AJ1960GBC-Temp / SEU Mitigation
SRM24960GFIM2AJ1960GBI-Temp / SEU Mitigation
SRM24480GFCM2AJ1480GBC-Temp / SEU Mitigation
SRM24480GFIM2AJ1480GBI-Temp / SEU Mitigation
SRM24240GFCM2AJ1240GBC-Temp / SEU Mitigation
SRM24240GFIM2AJ1240GBI-Temp / SEU Mitigation
