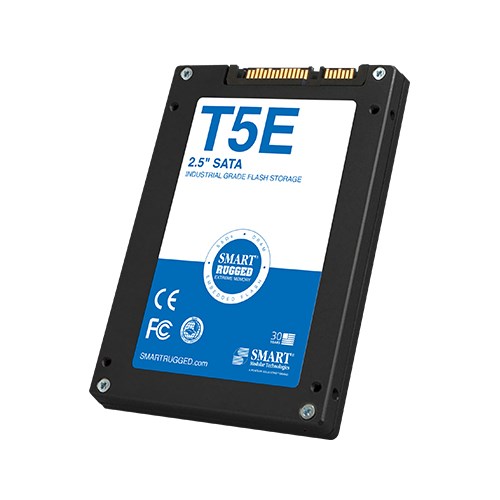

T5E TLC 2,5-Zoll-SATA-SSD

T-Serie

SMARTs RUGGED T5E SSD Serie ist die ideale Lösung für facettenreiche Applikationen, wie z.B. der Luft- und Bodenverteidigung, Industrieautomatisierung, Transport, Medizin, Telekommunikation und zahllosen weiteren Anwendungsgebieten. T5E SATA SSDs (2,5 Zoll) vereinen Hochleistung, überragende Zuverlässigkeit und Datensicherheit in einem besonders robusten Gehäuse.

Die SMART T5E SSD Serie wurde speziell auf Anforderungen ausgelegt, bei denen es neben hoher Temperaturfestigkeit ebenso auf höchste Leistung und Zuverlässigkeit ankommt. Aufschlussreiche und praxisorientierte Diagnosedaten werden über SSD-spezifische S.M.A.R.T-Attribute zur Verfügung gestellt, die zur Integritätsüberwachung des Laufwerks eingesetzt werden können.

T5E pSLC 2,5-Zoll-SATA-SSD

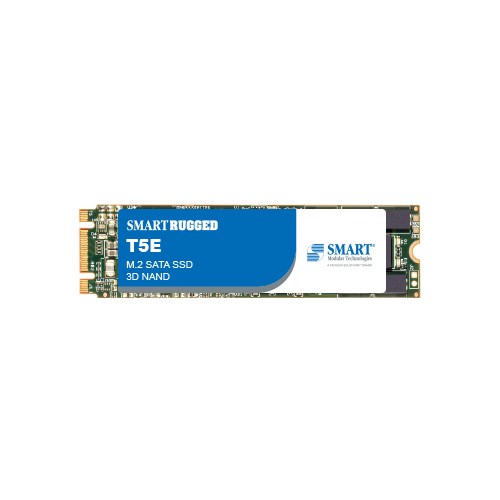

T5E M.2 2280 SATA SSD

SafeDATA™

Erweiterte Fehlererkennung und -korrektur (Advanced Error Detection & Correction)

AES-256-Verschlüsselung (AES-256 Encryption)

TCG Opal 2.0

Schreibschutz (Write Protection)

Secure Erase

Industrieller Temperaturbereich (-40 °C bis 85 °C)

Schutzlackversiegelung (Conformal Coating)

Telekommunikation

Industrie- und Fabrikautomation

Medizin

Transport

Militär und Luftfahrt

Luftfahrt

Wesentliches: ProduktserieT5E; NAND-Flash-Technologie3D TLC; SchnittstelleSATA 3.0 6Gb/s

Leistung: Sequenzielles Lesen (Maximum)Up to 550MB/s; Sequenzielles Schreiben (Maximum)Up to 535MB/s; Zufällige Lesezugriffe, 4K (Maximum)Up to 80K IOPS; Zufällige Schreibzugriffe, 4K (Maximum)Up to 50K IOPS; Kapazitäten120GB
240GB
480GB
960GB
1920GB
3840GB

Zuverlässigkeit: TDWUp to 1,000 TDW; MTBF> 2,000,000 hours

Umwelt: Erschütterung50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction; Vibration16.4 g rms 10-2000 Hz random, 3-axes; BetriebstemperaturC-temp: 0℃ to +70℃
I-temp: -40℃ to +85℃; Lagerungstemperatur-55℃ to +95℃; Feuchte5% to 95% non-condensing

Physische Angaben: Länge100mm; Breite69.85mm; Höhe7mm


HRCA2X3840HI001	3840GB	I Temp (-40˚C to +85˚C)
HRCA2X3840HC001	3840GB	C Temp (0˚C to +70˚C)
HRCA2X1920HI001	1920GB	I Temp (-40˚C to +85˚C)
HRCA2X1920HC001	1920GB	C Temp (0˚C to +70˚C)
HRCA2X0960HI001	960GB	I Temp (-40˚C to +85˚C)
HRCA2X0960HC001	960GB	C Temp (0˚C to +70˚C)
HRCA2X0480HI001	480GB	I Temp (-40˚C to +85˚C)
HRCA2X0480HC001	480GB	C Temp (0˚C to +70˚C)
HRCA2X0240HI001	240GB	I Temp (-40˚C to +85˚C)
HRCA2X0240HC001	240GB	C Temp (0˚C to +70˚C)
HRCA2X0120HI001	120GB	I Temp (-40˚C to +85˚C)
HRCA2X0120HC001	120GB	C Temp (0˚C to +70˚C)
HRCA2X3840HICC1	3840GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X3840HCCC1	3840GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X1920HICC1	1920GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X1920HCCC1	1920GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0960HICC1	960GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0960HCCC1	960GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0480HICC1	480GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0480HCCC1	480GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0240HICC1	240GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0240HCCC1	240GB	C Temp (0˚C to +70˚C) / Coating
HRCA2X0120HICC1	120GB	I Temp (-40˚C to +85˚C) / Coating
HRCA2X0120HCCC1	120GB	C Temp (0˚C to +70˚C) / Coating
HRCA2P3840HI001	3840GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P3840HC001	3840GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P1920HI001	1920GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P1920HC001	1920GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0960HI001	960GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0960HC001	960GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0480HI001	480GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0480HC001	480GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0240HI001	240GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0240HC001	240GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0120HI001	120GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0120HC001	120GB	C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P3840HICC1	3840GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P3840HCCC1	3840GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P1920HICC1	1920GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P1920HCCC1	1920GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0960HICC1	960GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0960HCCC1	960GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0480HICC1	480GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0480HCCC1	480GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0240HICC1	240GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0240HCCC1	240GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0120HICC1	120GB	I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0120HCCC1	120GB	C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
