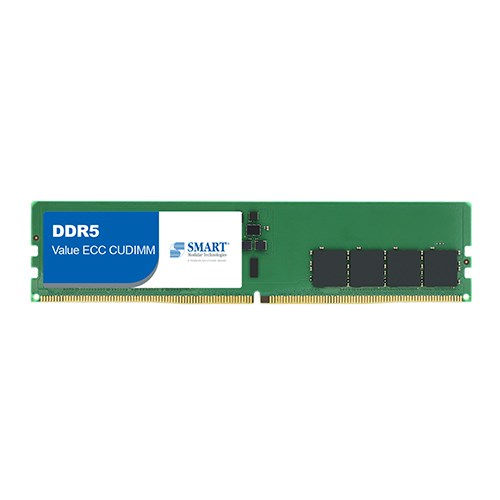

DDR5 Value ECC CUDIMM

DDR5 Value

The "C" in CUDIMM stands for "Clocked," indicating the presence of a Clock Driver (CKD) on the module. The CKD regenerates and amplifies the clock signal from the host, ensuring clean, synchronized timing across all DRAM components. SMART's CUDIMMs specifically include a CKD to deliver precise timing to each DRAM, improving signal integrity and enabling speeds up to 6400 MT/s. These modules maintain the low-latency benefits of unbuffered memory and are ideal for high-performance embedded, telecom, and networking applications.

Essentials
DDR5
ECC CUDIMM
C-temp: 0˚C to 70˚C
2Gx8
3Gx8
2G
4Gb
6Gb
x72
1.1V
288-Pin
Performance
16GB
32GB
48GB
6400MT/s
PC5-44800
CL = 52
Environmental
Yes
Physical
31.25mm
ST6G7CD538J-HM48GBC-temp (0˚C to +70˚C)
ST4G7CD528J-HA32GBC-temp (0˚C to +70˚C)
ST2G7CD528J-HA16GBC-temp (0˚C to +70˚C)
